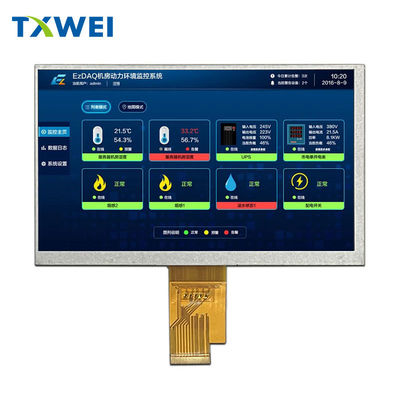

7-inch 1024 * 600 resolution LCD customizable touch screen 650nits display module with LVDS interface

TXW700147N1 Industrial grade Display Screen Product Promotion Copy

7-inch high-definition industrial screen TXW700147N1: expert in stable visibility in harsh environments

Core selling points
Durable military grade: Working in a wide temperature range of -30 ℃ to 80 ℃, not afraid of extreme cold and heat, adapting to the extreme challenges of industrial scenarios
High definition IPS hard screen: 1024 × 600 resolution+IPS full view technology, clear and visible in complex lighting environments
Strong design: 5.56mm ultra-thin body paired with a compact size of 164.9 × 100mm, making embedded installation more flexible

Application scenarios

✓ Security monitoring: 24-hour uninterrupted display, accurate restoration of monitoring screen details
✓ Industrial HMI: Anti electromagnetic interference, ensuring stable operation of production line control terminals
✓ Special vehicles: 650nits high brightness, clear instrument data under sunlight
✓ Medical equipment: certified by medical standards to meet the disinfection environment requirements of the operating room

The TXW700147N1 is not a universal screen that can be used anywhere, but rather a Swiss military knife that is specialized in extreme environments. Below are six real-life scenarios to discuss:

Security Law Enforcement:
Scenario: Traffic police/urban management portable law enforcement device, outdoor gate face comparison terminal.

• Pain points: Backlight, side lighting, direct flashing lights at night.
• Solution: 650 nits high brightness+IPS 178 °, clear facial details under sunlight, no color cast when viewed from the side.

Agricultural machinery:
Scenario: Tractor, harvester, rice transplanter cockpit instruments.

• Pain points: slow start-up due to -10 ℃ frost, 5G vibration screen, scratches caused by dust cleaning.

• Solution: -30 ℃ low temperature with 0 delay lighting, internal full rubber frame shockproof, optional 3H scratch resistant cover plate on the surface.

Medical equipment:
• Scenario: Portable DR, mobile ultrasound, emergency transport monitor.
• Pain points: flicker under shadowless lights in the operating room, EMC issues.
• Solution: DC dimming without flicker, the whole machine has passed the IEC 60601-1-2 medical electromagnetic compatibility test.

Ships and Ports:
• Scenario: Deck navigation display and control, shore crane operation console.
• Pain points: salt spray at sea, ultraviolet radiation, low nighttime illumination.
• Solution: 96 hour salt spray test with zero corrosion, UV coating on the panel for anti-aging, and adjustable brightness in night flight mode.

Industrial HMI/PLC panel:
• Scenario: CNC machine tools, injection molding machines, logistics sorting consoles.
• Pain points: oil stains, glove touch, 24 × 7 operation.
• Solution: Surface AF anti fingerprint+optional capacitive touch wet hand/glove mode; 30000 hours backlight lifespan.

Special vehicle modification:
• Scenario: Fire trucks, mining trucks, military shelters.
• Pain points: -30 ℃ extremely cold start,+80 ℃ engine compartment high temperature, 1 G continuous vibration.
• Solution: Full temperature LCD formula, internal shock-absorbing copper pillar, wide voltage 9-36V input synchronous backlight drive.

Technical parameter highlights
• Display chip: HX8282A11 driver IC, smooth screen without residual images
• Interface standard: LVDS 8-bit 40PIN industrial universal interface
• Effective display area: 154.21 × 85.92mm golden ratio
