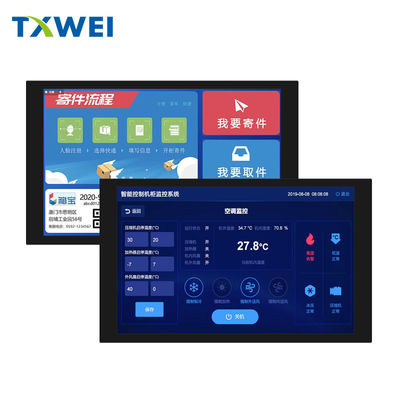

7.0-inch 800 * 1280 touch screen MIPI interface 500nits industrial automation display

performance of display devices are crucial. TXW700163S0-LX, as a high-performance touch screen certified by automotive regulations, features a 7-inch IPS hard screen and fully bonded G+G touch as its core, providing a stable and durable interactive experience for special scenarios. The following provides a comprehensive analysis from technical parameters to scenario applications for you.

Core advantages of display effect

1.Resolution: 800 × 1280 (216 PPI)
2.Compared to the common 800 × 480 resolution of 7-inch screens in the same class, the pixel density has increased by 2.7 times, and the edges of text/icons are sharper, making it 3.suitable for displaying complex instrument data or map details.

4.178 ° panoramic view with no color deviation, no visual attenuation in multi person collaboration or side view scenes (such as co pilot observation).
5.The color gamut covers 72% NTSC, and the color reproduction is better than that of ordinary TN panels (about 45% NTSC).
6.It is still clearly visible under sunlight, and the measured contrast ratio remains 5:1 under 100000 lux illumination (consumer screens usually have a ratio of less than 3:1).
7.Support automatic brightness adjustment (requires an external light sensing module) to adapt to sudden changes in light conditions such as tunnels/nighttime.
8.-There is no residual image or trailing phenomenon within the range of 20 ℃~70 ℃ (starting time<3 seconds at low temperature, no brightness attenuation at high temperature).
9.After passing the high humidity test at 85 ℃/85% RH, the screen showed no condensation of water mist.

Core parameter interpretation: Professional level display and touch performance

1. Display module
• High definition visual experience: 800 × 1280 resolution (216 PPI), combined with IPS wide viewing angle technology, ensuring no color cast at any angle, suitable for multi person viewing dashboard environments.
• Strong light visibility: 500nits high brightness (typical value), maintaining clear display even under direct sunlight, surpassing ordinary consumer screens (usually ≤ 300nits).
• Wide temperature range stability: operating temperature range of -20 ℃+70 ℃, storage temperature extended to -30 ℃+80 ℃, suitable for extreme cold/high temperature conditions (such as heavy machinery and vehicles in desert areas).

2. Touch module--Full environment interaction:
• Support glove operation (thickness ≤ 3mm) and rainwater touch, solving pain points in special operation scenarios.
• ST1633I touch IC provides 10 touch points, with a reporting rate of ≥ 120Hz and a delay of less than 8ms.
• Military grade reliability: G+G (tempered glass+tempered glass) full bonding process, surface hardness up to 7H, scratch resistance increased by 300%.

3. Interface and compatibility--Dual high-speed interface:
• Display: MIPI 4 Lane 40Pin, supports 1080P@60fps Video input.
• Touch control: I ² C protocol, compatible with mainstream embedded platforms such as Rockchip Micro, Quanzhi, NXP, etc.
• EMC enhanced design: Through ISO 11452-2 vehicle electromagnetic interference testing, the radiated immunity reaches 100V/m.

2,Differentiation advantage: why choose TXW700163S0-LX?

Vehicle grade long lifespan

1.The backlight adopts high weather resistant LED beads, with a working life of more than 30000 hours
2.Accelerated aging tests were conducted through mechanical vibration (20Hz~2000Hz/5Grms) and high temperature and humidity (85 ℃/85% RH/500h).
3.Chemical corrosion resistance: Surface anti fingerprint coating, resistant to solvent corrosion such as gasoline and alcohol.
4.Ultra thin design: the thinnest part is 2.35mm, saving car space; Optional 4.4mm reinforced frame version (IP65 protection).
5.Provide Linux/Android underlying drivers and development documentation to shorten customer product launch cycles by over 30%.
6.TXW700163S0-LX 7-inch industrial grade touch screen: multi domain professional display solution

TXW700163S0-LX is an ideal choice for industrial automation, special equipment, medical electronics, and other fields due to its high brightness, wide temperature stability, and strong anti-interference ability. The following are its specific manifestations and optimization solutions in various application scenarios:

1. Industrial automation (HMI human-machine interface)
▶ Wide temperature operation (-20 ℃~70 ℃), suitable for high-temperature workshops, low-temperature storage and other scenarios.
▶ Anti vibration design (5Grms) ensures stable operation in strong vibration environments such as CNC machine tools and stamping equipment.

2.Accurate interaction:
▶ Gloves+rainwater touch, suitable for oily and dusty environments (such as food processing and chemical plants).
▶ 10 touch+120Hz reporting rate, ensuring quick response to operation instructions.

3. Remote control display for unmanned vehicles/boats
▶ Strong light visibility: 500nits high brightness+IPS wide viewing angle, still clearly visible under strong outdoor light.
▶ Low latency communication: MIPI 4 Lane interface, transmission delay<5ms, meets real-time monitoring requirements.
▶ EMC anti-interference: certified by ISO 11452-2 to avoid display abnormalities caused by wireless remote control signal interference.

4. Monitor display (security/military)
▶ 7 × 24-hour continuous operation: LED backlight lifespan>50000 hours, reducing maintenance costs.
▶ High contrast ratio (1000:1), clearer details in night vision monitoring images.
▶ Reinforced border version (IP65 protection), dustproof and waterproof, suitable for shipborne and border defense equipment.

5. Medical equipment display
▶ Wide color gamut and precise color rendering: 72% NTSC color gamut ensures no color deviation in medical imaging (X-ray, ultrasound).
▶ Antibacterial coating optional: surface nano silver coating to inhibit bacterial growth (compliant with ISO 22196 standard).
▶ Flicker free DC dimming: reduces visual fatigue from prolonged viewing and protects the eyes of medical staff.

6. Industrial computers/embedded terminals
▶ Plug and play compatibility: Supports mainstream embedded platforms such as Rockchip Micro, NXP, and Quanzhi.
▶ Ultra thin design (with a minimum thickness of 2.35mm), suitable for compact devices such as POS machines and self-service terminals.
▶ Long life design: 50000 hours of backlight life, reducing the frequency of commercial equipment replacement.
